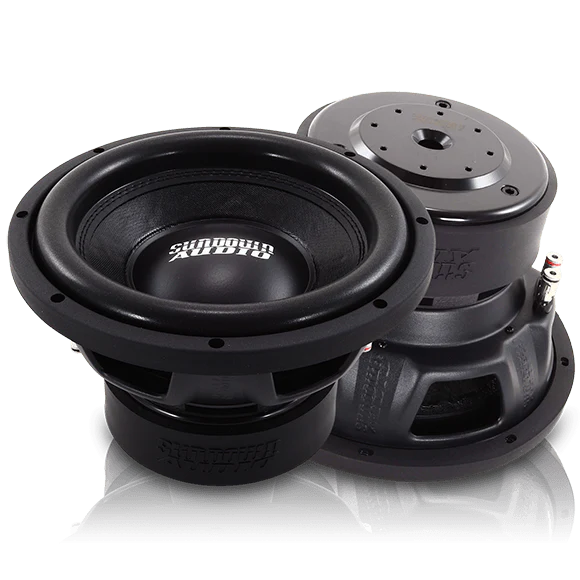

E-Series V.4 10” Subwoofer
E-Series V.4 10” Subwoofer
Couldn't load pickup availability
750 Watts RMS / 1500 Watts Peak
Dual 2 or 4 ohm voice coils
Optimized for ported enclosures
Class-leading 14mm Xmax
Double-stacked magnet
Vented magnetic gap & pole piece for superior cooling
High strength stamped steel frame
High temp 4-layer copper voice coil wire
High-quality push terminals
Stitched-on Mini-XL tinsel leads
Specifications
T/S Specs
RMS Power (D4)
750
RMS Power (D2)
750
Peak Power (D2)
1500
Peak Power (D4)
1500
RE D2 (Ohms)
4
RE D4 (Ohms)
6.1
FS D2 (Hz)
32.2
FS D4 (Hz)
33.5
VAS D2 (L)
0.603
VAS D4 (L)
0.656
Qes D2
0.615
Qes D4
0.641
Qms D2
5.805
Qms D4
5.402
Qts D2
0.556
Qts D4
0.573
Le D2 (mH)
4.484
Le D4 (mH)
5.715
BL D2 (NA)
17.418
BL D4 (NA)
19.633
Mms D2 (Grams)
205.007
Mms D4 (Grams)
186.048
Cms D2 (uM/N)
101.096
Cms D4 (uM/N)
109.995
Sens D2 (dB @ 1w/1m)
82.486
Sens D4 (dB @ 1w/1m)
82.756
Xmax D2
14MM
Xmax D4
14MM
Subwoofer Measurements
Documentation
Physical Dimensions
Displacement (Inches)
.06cu ft
Depth (Inches)
5.62"
Cutout (Inches)
9.12"
Motor Diameter (Inches)
6.37"
Ported Enclosure Specs
Ported Enclosure Size
1.0cu ft
Recommended Port Area
15sq in
Recommended Port Tuning
35hz
Sealed Enclosure Specs
Sealed Enclosure Size
Not Recommended
4th Order Enclosure Specs
4th Order Sealed Side
.4cu ft
4th Order Ported Side
1.2cu ft
4th Order Port Area
24sq in
4th Order Port Length
6"
