DESCRIPTION

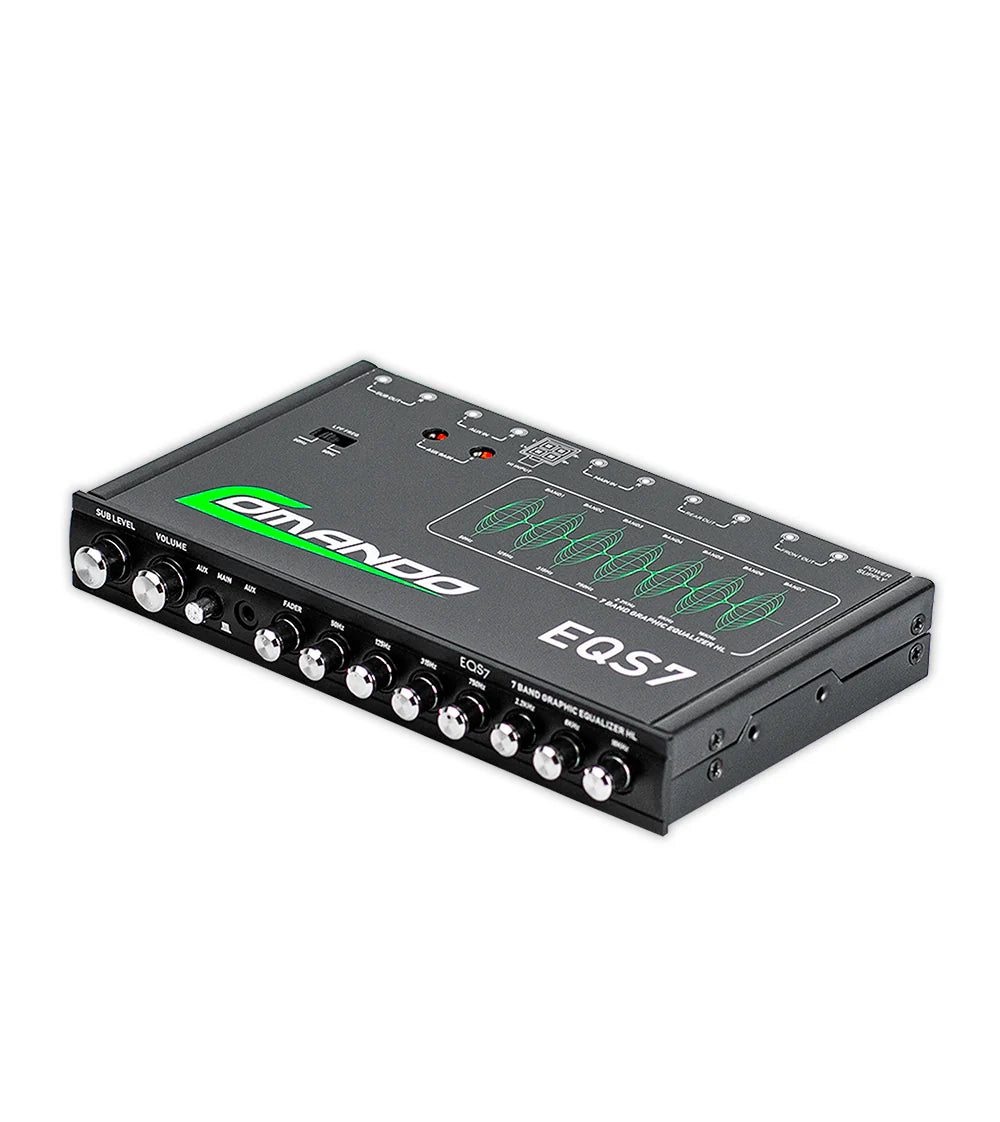

The Comando EQS7 is a 7-band stereo equalizer / crossover specifically created for the mobile environment. The EQS7 provides poweerful features in a compact size:

• Seven equalization bands (50Hz, 125Hz, 750Hz, 2.2KHz, 6KHz and 16KHz), each frequency adjustable from -12 to +12 dB (-15 to +15 dB for subwoofer frequencies).
• Subwoofer output uses a built-in 18dB per octave electronic crossover fixed at 60Hz or 90Hz.
• Three stereo RCA outputs to drive front, rear and subwoofer audio amplifiers.
• An auxiliary stereo RCA input for use with portable devices , such as an MP3 player or DVD player.
• Separate controls for master volume, subwoofer volume (sub level), front/rear fader and selection of main or auxiliary inputs.
• Extended frequency response from 20Hz to 30KHz with exceptional 100dB signal-to-noise perfomance.
• Gold-plated RCA connectors to ensure the best audio signal output.
• ISO mounting holes and removable trim ring for custom installation.



TECHNICAL DATA


 Graphic center frequencies

50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KHz, 16KHz

 Boost / cut

12dB

 S / N ratio

100dB

 Frequency response

10Hz-50KHz +/- 1 dB

 Maximum output voltage

7V

 T.H.D

0.005%

 Input sensitivity

50mV - 3V

 Head room

20dB

 Input impedance

20K ohms

 Output impedance

2K ohms

 Stereo separation

82dB/1KHz

 Operating voltage

11V-15V Negative Ground

 Size

 7'' Wide by 4 1/8'' Deep by 1'' High
