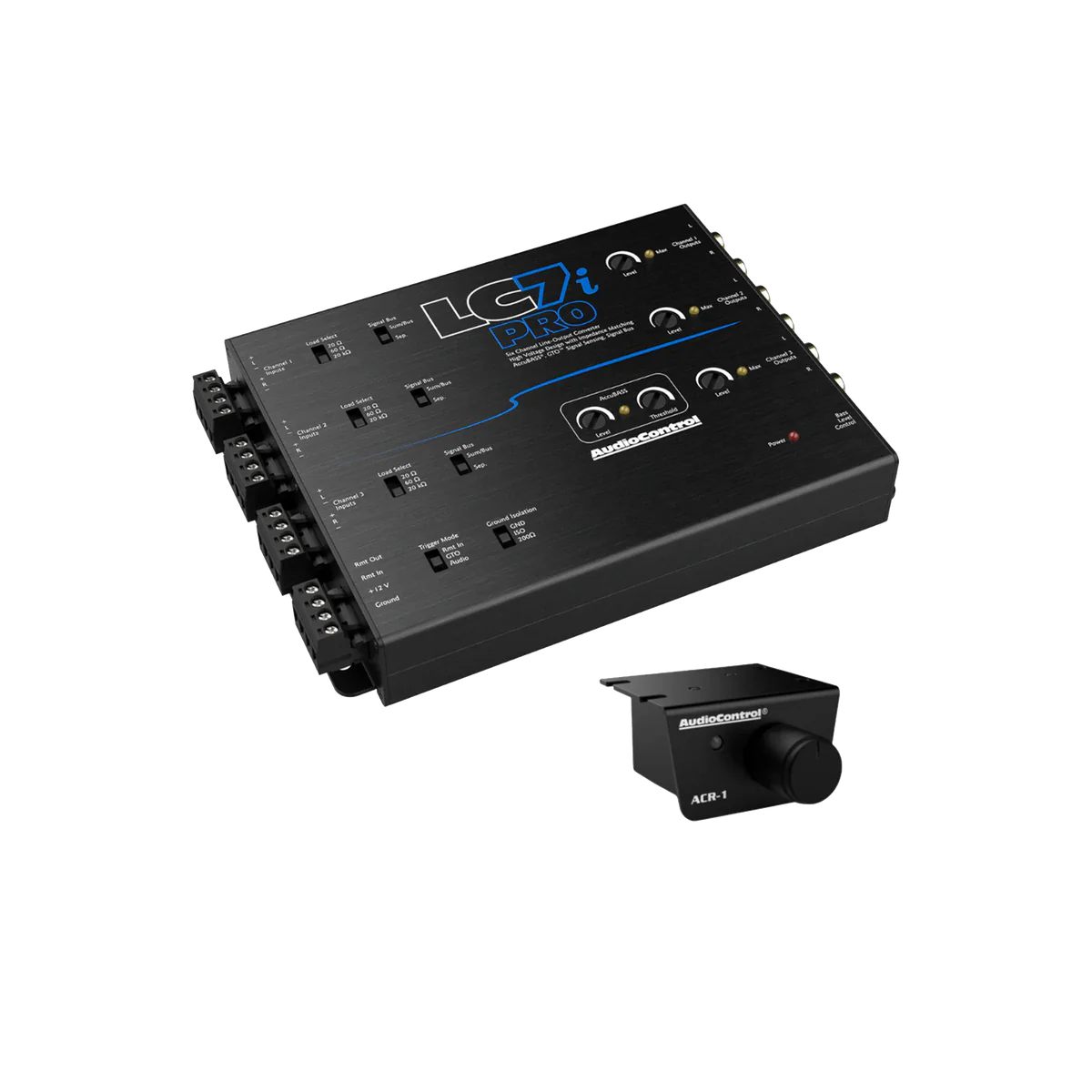

LC7iPRO 6-Channel Line Output Converter w/AccuBASS
LC7iPRO 6-Channel Line Output Converter w/AccuBASS
Regular price
$330.00
Regular price
$330.00
Sale price
Unit price
per
Couldn't load pickup availability
FEATURES
- Six channels of active speaker-level inputs (up to 40V input handling)
- Fixed and variable outputs with discrete-level controls
- AccuBASS® processing for correction of bass roll-off
- Load Selection Switch
- GTOTM Signal Sensing
- Ground Isolation Switch
- ACR-1 dash remote included
- Compact design
SPECIFICATIONS
INPUTS
- Speaker Level Input: 3 (6 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
OUTPUTS
- Preamp Outputs: 6 (4 channels main, 2 channels bass)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Gain: +/- 15 dB
- Output Impedance: 150Ω
PERFORMANCE
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >124 dB
- Frequency Response: 20 Hz – 20 kHz
CONTROL
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
GENERAL
- Current Draw: 330 mA
- Recommended Fuse Rating: 2 A
WEIGHTS & DIMENSIONS
- Dimensions: 7″L x 5.1″D x 1.14″H (including speaker connectors)
- Weight: 1.15 lbs.
IN THE BOX: LC7i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual
