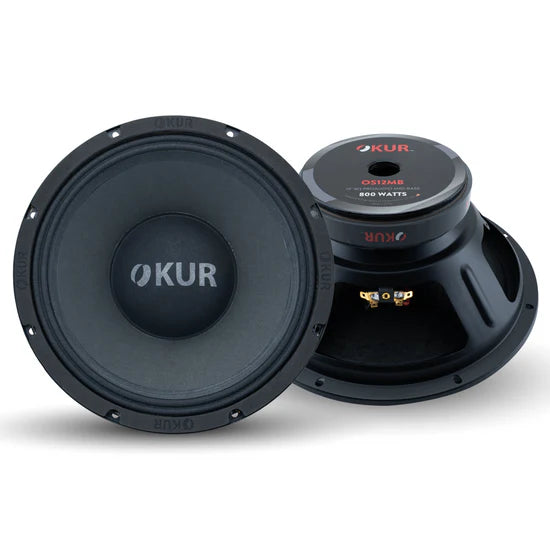

OS12MB : 12in Midbass 4 Ohm
OS12MB : 12in Midbass 4 Ohm
Regular price
$120.00
Regular price
$120.00
Sale price
Unit price
per
Couldn't load pickup availability
Specifications
| Size - 12" |
| Impedance: 4 |
| RMS Watts: 400 |
| Music Program - 800 |
| Resonance 59.7 Hz |
| Sensitivity: 94.8 dB |
| Voice Coil Diameter: 2.5" |
| Sold As - Single |
| Driver Composition |
| Voice Coil Wire: CCAW |
| Coil: KSV |
| Magnet: Ferrite |
| Basket: Stamped Steel |
| Cone: paper |
| Cone Edge: cloth |
| T/S Parameters |
| Resonant Frequency (fs) 59.7 |
| DC Resistance (RE) 3.2 |
| Coil Inductance (LE) 0.45mH |
| Mechanical Q Qms) 8.23 |
| Electromagnetic Q (QES): 0.57 |
| Total Q (QTS) 0.53 |
| Compliance Equivalent volume (VAS) 53.1 |
| Mechanical Compliance of Suspension (CMS) 0.13 |
| BL Product (BL) 10.6 N/A |
| Diaphragm Mass Inc. Airload (Mms) 52.7 gr |
| Mounting Information |
| Overall Diameter: 311mm |
| Cutout diameter: 282.55mm |
| Mounting Depth: 122mm |
