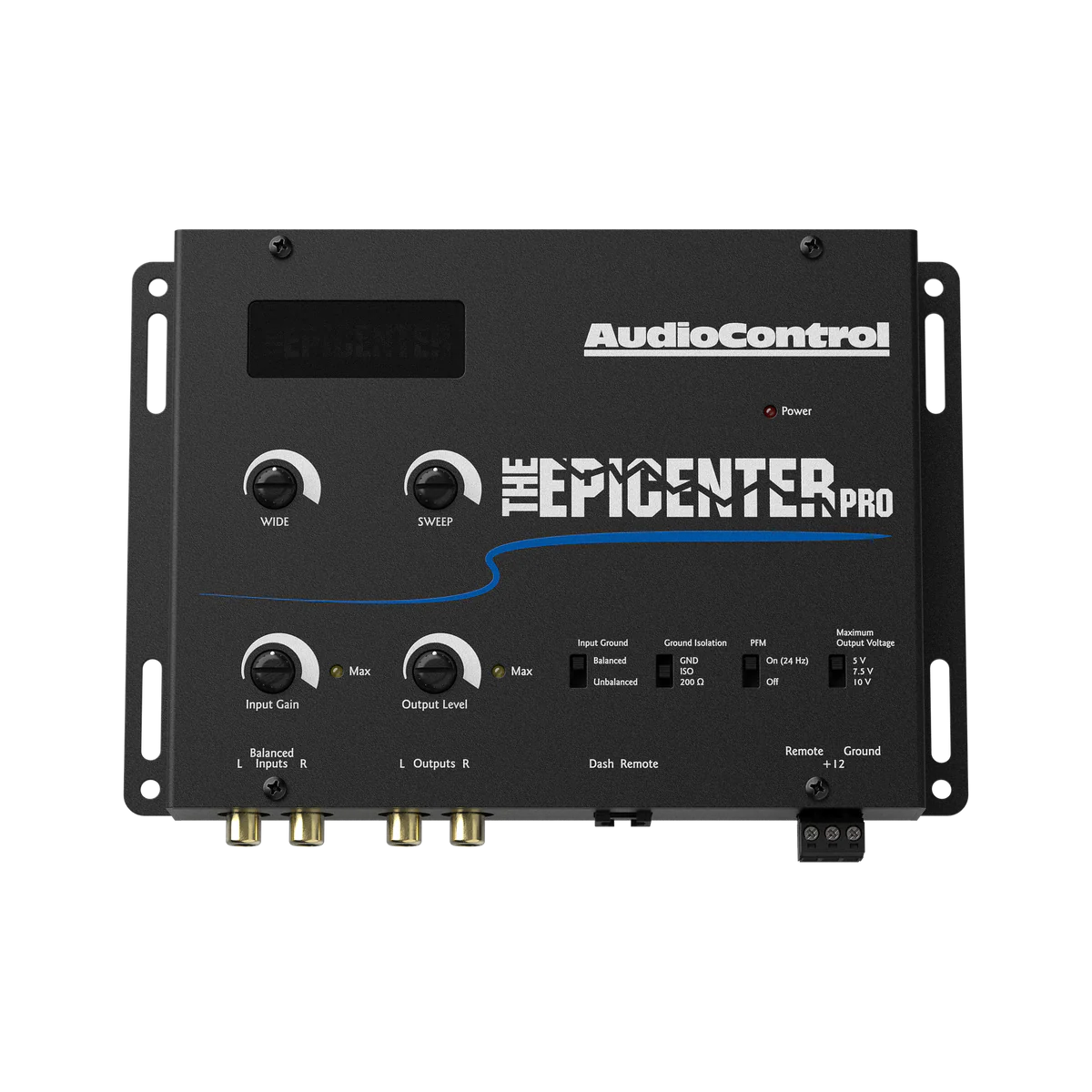

The EPICENTER PRO Bass Restoration Processor & Line Driver
The EPICENTER PRO Bass Restoration Processor & Line Driver
Couldn't load pickup availability
FEATURES
• AudioControl’s Original Digital Bass Restoration Circuit: Restore missing low notes and transform flat audio into rich, powerful bass you can truly feel.
• Powerful Line Driver: Provides an ultra-clean, high-voltage signal, eliminating noise and maximizing the performance potential of your aftermarket amplifiers.
• Selectable Output Voltage: Precisely match the signal output to your amplifier's input stage to achieve maximum clean power and optimal gain structure.
• ParaBASS Controls: Gain surgical control over your bass by adjusting the center frequency, width, and level of the bass boost, perfectly tailoring the low-end to your vehicle's acoustics.
• Selectable Subsonic Filter: Protect your subwoofers from damaging, inaudible ultra-low frequencies while focusing amplifier power on the bass you can actually hear and feel.
• Balanced Inputs: Helps eliminate electrical interference and hum, delivering crystal-clear sound even in noisy car environments.
• Dynamic LED Display: A responsive, eye-catching visual indicator that shows exactly how much bass restoration is happening in real-time.
• ACR-4 Dash Remote Included: Gives you instant, fingertip control over the bass level from your dashboard, allowing you to dial the thump up or down safely while driving.
SPECIFICATIONS
INPUTS
- Maximum Line Level Input: 10Vrms
- Line Level Input Impedance: 7kΩ
OUTPUTS
- Maximum Output Level (THD<1%): 9Vrms, 13V peak
- Output Impedance: 150Ω
PERFORMANCE
- Total Harmonic Distortion: 0.03%
- Signal to Noise: >105 dB
- Frequency Response: 10 Hz – 22 kHz ±1 dB
- PFM Filter (High Pass): Selectable 24 Hz or Bypass
GENERAL
- Power Supply: High Headroom PWM Switching
- Current Draw: 300 mA
- Recommended Fuse Rating: 1 A
WEIGHTS & DIMENSIONS
- Dimensions: 8″L x 5.5″D x 1.2″H
- Weight: 1.7 lbs
IN THE BOX: The EPICENTER PRO, ACR-4, Remote Cable, User Manual
Sound Check: Your Full Tilt Questions, Answered
Can you install it for me?
Can you install it for me?
Yes. Book an install slot when you reserve the product and drop your vehicle off at our Alamo shop—system tuning is always included.
Do you offer same-day pickup?
Do you offer same-day pickup?
Order by 3 PM, choose Local Pickup – Alamo, and we’ll have your gear curb-side that afternoon. Holds are good for 24 hours.
Is financing available?
Is financing available?
Absolutely. In-store we offer Shop Pay Installments (4-pay, 10 %)
